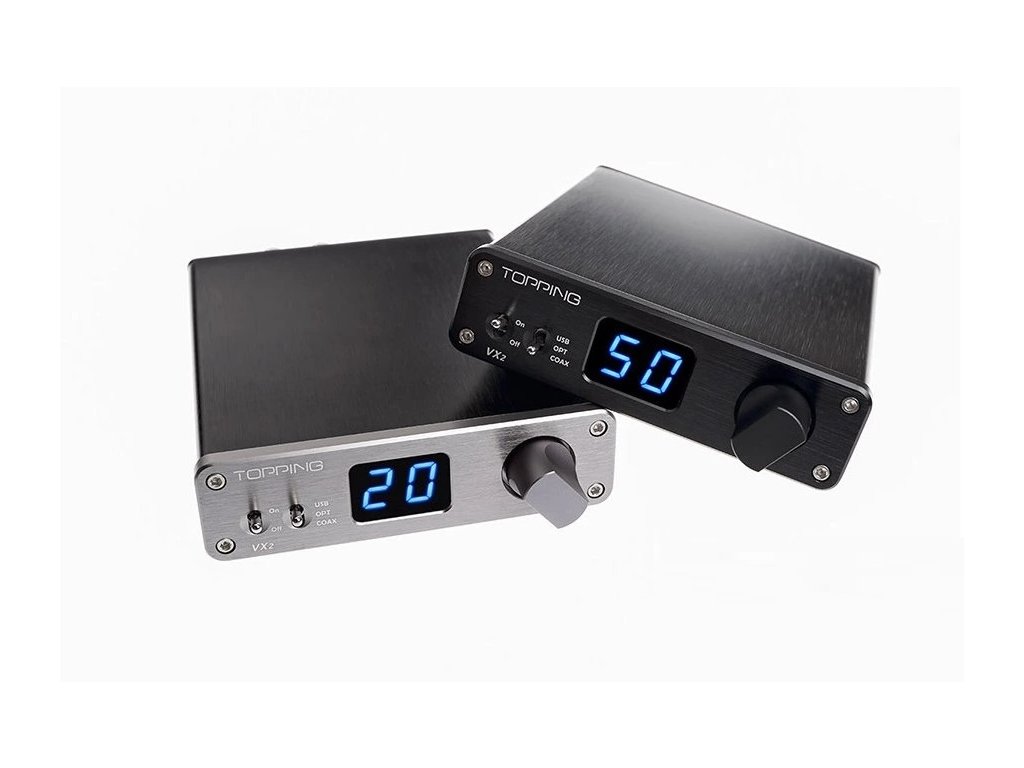

Topping VX2

Detailní popis produktu

Plně digitální zesilovač / USB (24bit/96kHz) / Coaxial & Optical (24bit/192kHz) / 2x40W (RL=4Ω, THD+N=10%)

Technical parameters:

- Digital input:Coaxial & Optical (24bit/192kHz) USB (24bit/96kHz)

- Amplifier output:Binding Post (L & R channel), BTL output

- Maximum sample bit of DAC:24bit

- Maximum sample rate of DAC: 192kHz

- Net weight:Approx 530g (unit only)

- Dimensions: Approx 17.8CM x 12.2CM x 3.8CM

Features:

Full digital amplifier, from dightal signal to speaker, needn't an external DAC

ST's STA326 full digital amplifier

24bit/96kHz USB

24bit/192kHz Coaxial & Optical

HIFI Electronic Components:

ALPS / Panasonic Encorder

KOA Resistance

nichicon FW Capacitance

EPCOS Capacitance

Specification:

Digital input:Coaxial & Optical (24bit/192kHz)

USB (24bit/96kHz)

Amplifier output: Binding Post (L & R channel), BTL output

Maximum sample bit of DAC:24bit

Maximum sample rate of DAC: 192kHz

Net weight:Approx 530g (unit only)

Dimensions: Approx 17.8CM x 12.2CM x 3.8CM

Speaker amplifier:

Suitable Speaker Impedance:4-8Ω

Maximum output power :40W (RL=4Ω, THD+N=10%);35W (RL=8Ω, THD+N=10%)

Output resistance:<0.84Ω

Minimum THD+N :0.052%

THD+N(@1kHz) :0.076%

Frequency response :20-20kHz±1.7dB

Noise: <1mV

Package:

1 x VX2 Unit

1 x USB Cable

1 x User Manual

1 x AC 100V-240V Input, DC24V3A Output Adapter (CE, FCC, PSE, UL certified)
